Kennametal - Modular End Mill Reductions & Extensions Type: End Mill Extension Shank Type: Screw-On Connection
Item #: 58518986
Brand: Kennametal
Model #: 1889117
Exact Tooling IR#: 04
Product Specifications

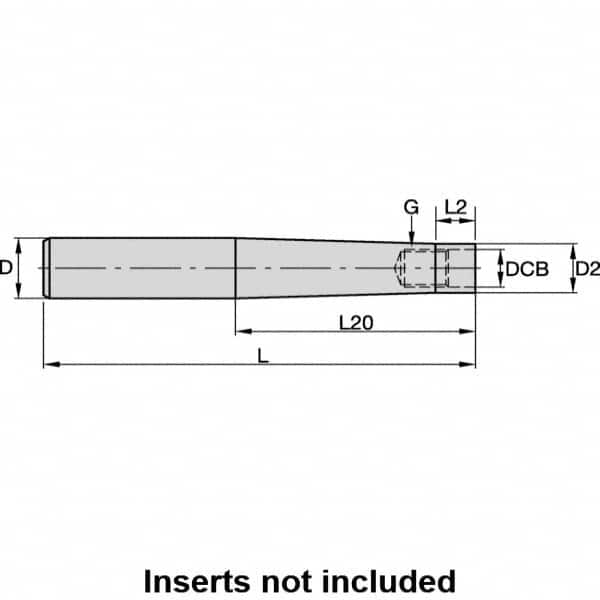

Modular End Mill Reductions & Extensions; Type: End Mill Extension ; Shank Type: Screw-On Connection ; Shank Diameter (mm): 16.00 ; Shank Diameter (Decimal Inch): 0.6299 ; Shank Connection Size: M8 ; Projection (Decimal Inch): 3.1496
| Type | End Mill Extension |
| Shank Type | Screw-On Connection |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Connection Size | M8 |
| Projection (Decimal Inch) | 3.1496 |
| Projection (mm) | 80.00 |
| Nose Diameter (mm) | 13.00 |
| Nose Diameter (Decimal Inch) | 0.5118 |
| Nose Hole Thread Size | M8x1.25 |
| Overall Length (mm) | 128.00 |
| Overall Length (Decimal Inch) | 5.0394 |
