Kennametal - BT40 Taper, M16x2 Thread, 60° Angle Radius, Standard Retention Knob - 2.3622" OAL, 0.5886" Knob Diam, 1-3/8" from Knob to Flange, 0.6689" Pilot Diam
Item #: 58518663
Brand: Kennametal
Model #: 1192420
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.

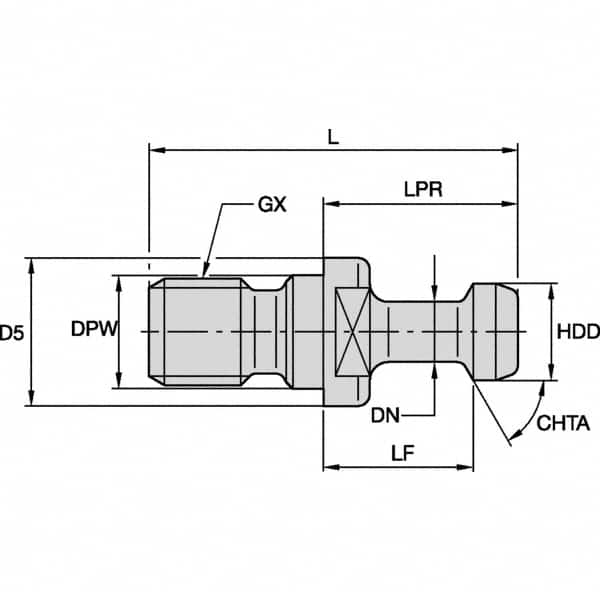

| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | BT40 |
| Thread Size | M16x2 |
| Angle Radius | 60.00 |
| Knob Diameter (Decimal Inch) | 0.5886 |
| Through Coolant | No |
| Neck Diameter (Decimal Inch) | 0.3917 |
| Pilot Diameter (Decimal Inch) | 0.6689 |
| Overall Length (Decimal Inch) | 2.3622 |
| Knob to Flange Length (Decimal Inch) | 1.3760 |
