Kennametal - A Style, ISO50 Taper, M24x3 Thread, 75° Angle Radius, Standard Retention Knob - 2.9134" OAL, 1.1004" Knob Diam, 1.3386" from Knob to Flange, 0.984" Pilot Diam, 0.4547" Coolant Hole, Through Coolant
Item #: 58518515
Brand: Kennametal
Model #: 1285502
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.

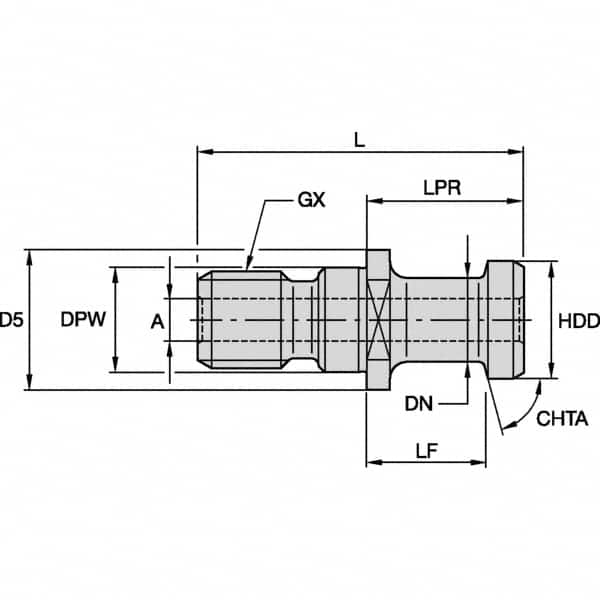

| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | ISO50 |
| Thread Size | M24x3 |
| Angle Radius | 75.00 |
| Knob Diameter (Decimal Inch) | 1.1004 |
| Through Coolant | Yes |
| Style | A |
| Neck Diameter (Decimal Inch) | 0.8248 |
| Pilot Diameter (Decimal Inch) | 0.9840 |
| Overall Length (Decimal Inch) | 2.9134 |
| Knob to Flange Length (Decimal Inch) | 1.3386 |
| Coolant Hole Diameter (Decimal Inch) | 0.4547 |
