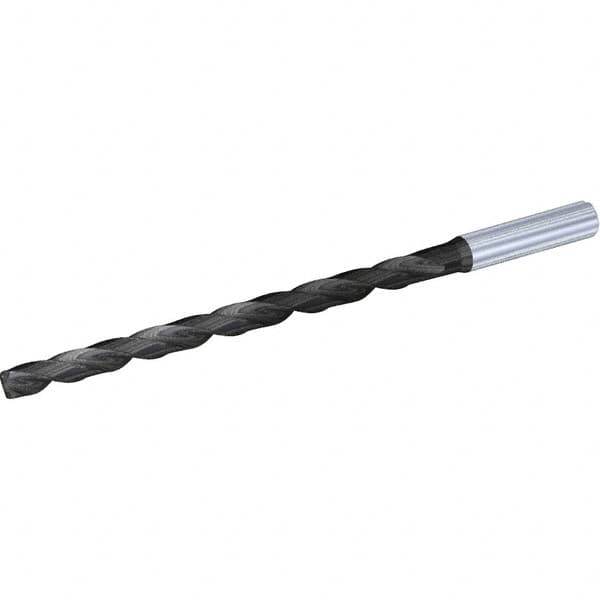

Extra Length Drill Bit: 0.213″ Dia, 135 °, Solid Carbide Multilayer TiAlN Finish, 3.3071″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series B269-HP
Item #: 58517624
Brand: Kennametal
Model #: 4169252
Product Specifications
| Drill Bit Size (Wire) | #3 |
| Overall Length (mm) | 125.00 |
| Flute Length (mm) | 84.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Multilayer TiAlN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B269-HP |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | 0.0002 to 0.0006 in; +0.004 to +0.016 mm |
| Number Of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.2130 |
| Drill Point Length (mm) | 1.02 |
| Drill Point Length (Decimal Inch) | 0.0400 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Flute Length (Decimal Inch) | 3.3071 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 2.7953 |
| Maximum Drilling Depth (mm) | 71.00 |
| Specification Designation | DIN |
