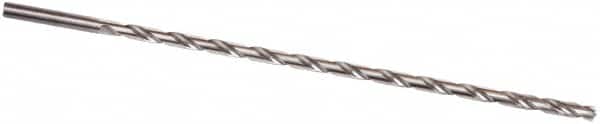

Extra Length Drill Bit: 0.0984″ Dia, 135 °, Solid Carbide Bright Finish, 2.0079″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series B271-HPS
Item #: 58516527
Brand: Kennametal
Model #: 4028875
Product Specifications
| Drill Bit Size (mm) | 2.50 |
| Overall Length (mm) | 86.00 |
| Flute Length (mm) | 51.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Bright |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B271-HPS |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm; -0.0006 to 0.0000 in |
| Number Of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.0984 |
| Drill Point Length (mm) | 0.46 |
| Drill Point Length (Decimal Inch) | 0.0182 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Shank Length (Decimal Inch) | 1.1811 |
| Shank Length (mm) | 30.00 |
| Flute Length (Decimal Inch) | 2.0079 |
| Flute By Diameter Ratio | 18xD |
| Maximum Drilling Depth (Decimal Inch) | 1.7323 |
| Maximum Drilling Depth (mm) | 44.00 |
