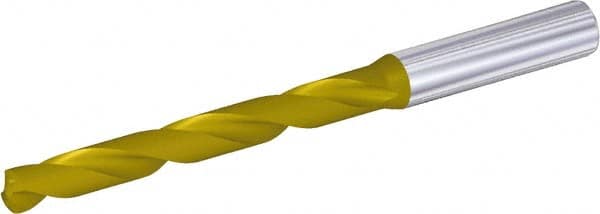

Screw Machine Length Drill Bit: 0.7165″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series B051A
Item #: 58513367
Brand: Kennametal
Model #: 4148477
Product Specifications
| Drill Bit Size (mm) | 18.20 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Helical |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Drill Bit Size (Decimal Inch) | 0.7165 |
| Overall Length (mm) | 131.00 |
| Overall Length (Decimal Inch) | 5.1575 |
| Shank Diameter (mm) | 20.00 |
| Series | B051A |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 2.1654 |
| Maximum Drilling Depth (mm) | 55.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.00 |
| Drill Point Length (mm) | 3.16 |
| Drill Point Length (Decimal Inch) | 0.1244 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0008 in; -0.021 to 0.000 mm |
| Standards | DIN 6535; DIN 6537 |
| Flute Length (Decimal Inch) | 3.1102 |
| Flute Length (mm) | 79.00 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 17.00+ |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
 | |
| MSC Part # | 58513367 |
| Mfr Part # | 4148477 |
| Country of OriginCountry of Origin is subject to change | Germany |
