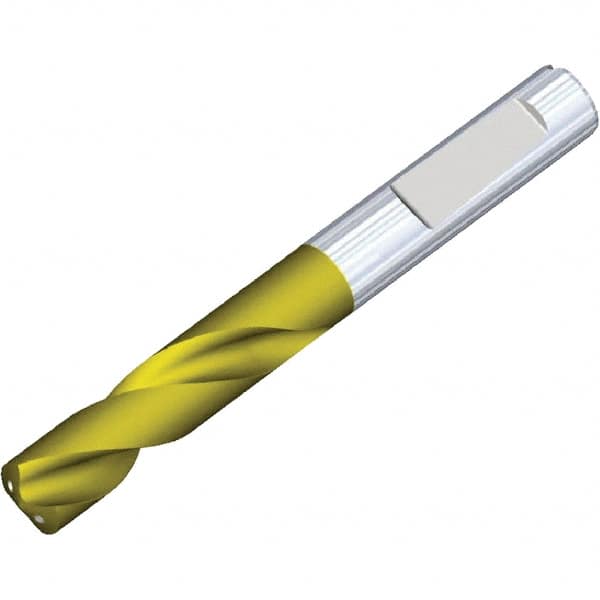

Screw Machine Length Drill Bit: 0.7402″ Dia, 140 °, Solid Carbide Multilayer TiAlN Finish, Right Hand Cut, Spiral Flute, Whistle Notch Shank, Series B051F-CPG
Item #: 58511916
Brand: Kennametal
Model #: 4149093
Product Specifications
| Drill Bit Size (mm) | 18.80 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multilayer TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Whistle Notch |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Drill Bit Size (Decimal Inch) | 0.7402 |
| Overall Length (mm) | 131.00 |
| Overall Length (Decimal Inch) | 5.1575 |
| Shank Diameter (mm) | 20.00 |
| Series | B051F-CPG |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 2.1654 |
| Maximum Drilling Depth (mm) | 55.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.00 |
| Drill Point Length (mm) | 3.27 |
| Drill Point Length (Decimal Inch) | 0.1286 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0008 in; -0.021 to 0.000 mm |
| Flute Length (Decimal Inch) | 3.1102 |
| Flute Length (mm) | 79.00 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 17.00+ |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
