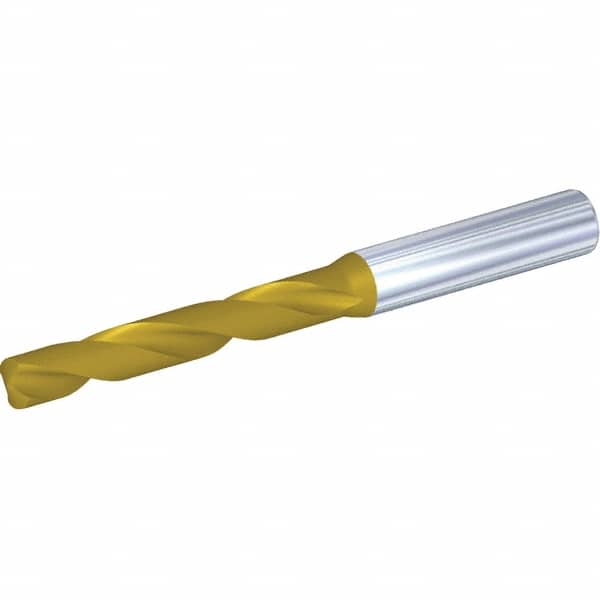

Micro Drill Bit: 0.0472″ Dia, 140 °, Solid Carbide TiAlN Finish, 2.2835″ OAL, RH Cut, Spiral Flute, Straight-Cylindrical Shank, Series B041A-CPG
Item #: 58510223
Brand: Kennametal
Model #: 4151631
Product Specifications
| Drill Bit Size (mm) | 1.20 |
| Drill Bit Size (Decimal Inch) | 0.0472 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 7.00 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 5.00 |
| Series | B041A-CPG |
| Overall Length (Decimal Inch) | 2.2835 |
| Overall Length (mm) | 58.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Standard |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm |
| Shank Diameter (mm) | 4.00 |
| Shank Length (mm) | 28.00 |
| Spiral Type | Regular |
| Specification Number | DIN 6537K |
