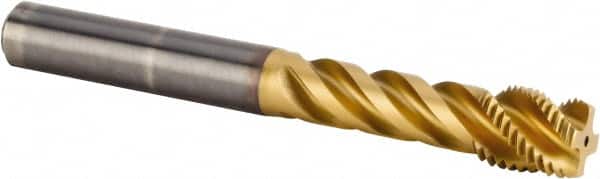

Kennametal - M14x1.50 Metric Fine 4 Flute 6HX Modified Bottoming Spiral Flute Tap - Solid Carbide, TiAlN Finish, 110mm OAL, Right Hand Flute, Right Hand Thread, Series T331
Item #: 58506254
Brand: Kennametal
Model #: 3483074
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M14x1.50 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6HX |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | Through Coolant |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.00 |
| Helix Angle | 45 |
| Thread Standard | Metric Fine |
| Thread Length (Decimal Inch) | 0.6299 |
| Thread Length (mm) | 16.00 |
| Flute Type | Fast Spiral |
| Series/List | T331 |
| Neck Length (Decimal Inch) | 1.5748 |
| Tapping Depth (Decimal Inch) | 2.2047 |
| Tapping Depth (mm) | 56.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.00 |
| Shank Length (Decimal Inch) | 2.0591 |
| Shank Length (mm) | 52 |
| Material Application | Cast Iron; Steel |
