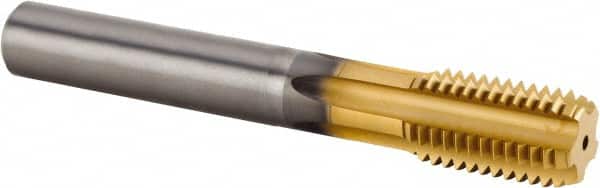

Kennametal - M20x2.50 Metric Coarse 6HX 5 Flute TiAlN Finish Solid Carbide Straight Flute Machine Tap - Bottoming, Right Hand Thread, 140mm OAL, 30mm Thread Length, Oversize, Through Coolant
Item #: 58506023
Brand: Kennametal
Model #: 3632195
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M20x2.50 |
| Class of Fit | 6HX |
| Number of Flutes | 5 |
| Chamfer | Bottoming |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 5.51180 |
| Overall Length (mm) | 140.00 |
| Oversize | No |
| Series/List | T351 |
| Thread Length (Decimal Inch) | 1.1811 |
| Thread Length (mm) | 30.00 |
| Neck Length (Inch) | 1-27/64 |
| Tapping Depth (mm) | 66 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Shank Diameter (mm) | 18.00 |
| Shank Length (Decimal Inch) | 2.77 |
| Shank Length (mm) | 70 |
| Material Application | Cast Iron; Steel |
