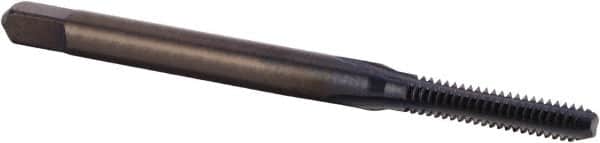

Kennametal - #4-40 UNC 2B 3 Flute Oxide Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 1-7/8" OAL, 14.29mm Thread Length, H2 Limit, Oversize
Item #: 58505504
Brand: Kennametal
Model #: 4131594
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | #4-40 |
| Class of Fit | 2B |
| Thread Limit | H2 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 1.87500 |
| Overall Length (Inch) | 1-7/8 |
| Overall Length (mm) | 47.63 |
| Oversize | No |
| Series/List | KHSST |
| Thread Length (Decimal Inch) | 0.5625 |
| Thread Length (mm) | 14.29 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Shank Diameter (mm) | 3.58 |
| Square Size (Decimal Inch) | 0.1100 |
| Square Size (mm) | 2.79 |
| Material Application | Cast Iron; High Temperature Alloys; Non-Ferrous Materials; Stainless Steel; Steel |
