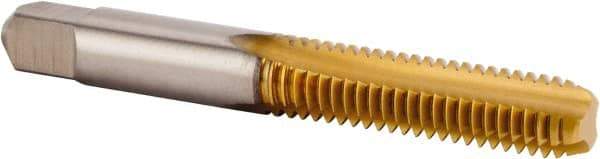

Kennametal - #10-32 UNF 2B 3 Flute TiN Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 60.45mm OAL, 22.23mm Thread Length, H2 Limit, Oversize
Item #: 58505306
Brand: Kennametal
Model #: 4130716
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | #10-32 |
| Class of Fit | 2B |
| Thread Limit | H2 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (Decimal Inch) | 2.38000 |
| Overall Length (mm) | 60.45 |
| Oversize | No |
| Series/List | KHSST |
| Thread Length (Decimal Inch) | 0.8750 |
| Thread Length (mm) | 22.23 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Shank Diameter (mm) | 4.93 |
| Material Application | Cast Iron; Non-Ferrous Materials; Stainless Steel; Steel |
