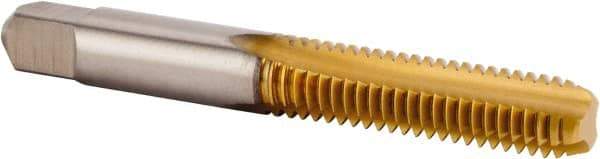

Kennametal - #6-32 UNC 2B 2 Flute TiN Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 50.8mm OAL, 17.48mm Thread Length, H3 Limit, Oversize
Item #: 58505298
Brand: Kennametal
Model #: 4130720
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | #6-32 |
| Class of Fit | 2B |
| Thread Limit | H3 |
| Number of Flutes | 2 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (mm) | 50.80 |
| Oversize | No |
| Series/List | KHSST |
| Thread Length (Decimal Inch) | 0.6880 |
| Thread Length (mm) | 17.48 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Shank Diameter (mm) | 3.58 |
| Material Application | Cast Iron; Non-Ferrous Materials; Stainless Steel; Steel |
