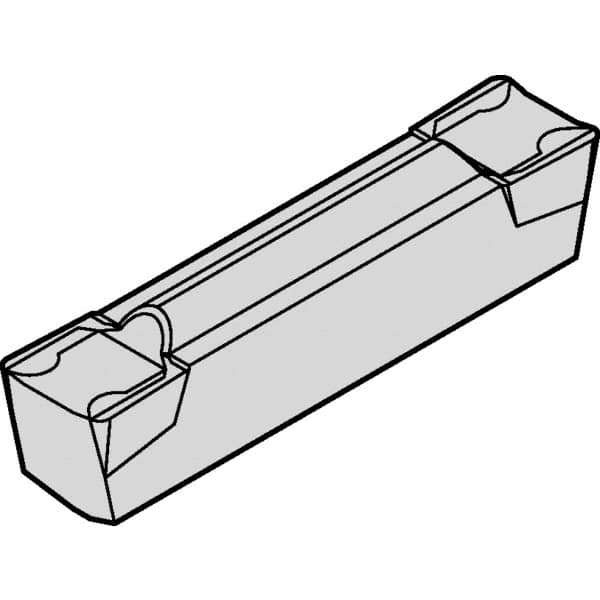

Kennametal - A4C0405 CF KCU25 Grade, 0.1594" Cutting Width, Carbide Cutoff Insert - 10° Left Hand Lead Angle, 0.008" Cnr Rad, AlTiN Coated, Double End
Item #: 58500240
Brand: Kennametal
Model #: 4114291
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | A4C |
| Insert Size | 0405 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 10 |
| Cutting Width (mm) | 4.05 |
| Cutting Width (Decimal Inch) | 0.1594 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Series | A4 |
| Relief Angle | 2 |
| Chipbreaker | CF |
| Full Radius | No |
| Coating Process | PVD |
| Overall Length (mm) | 20.10 |
| Overall Length (Decimal Inch) | 0.7913 |
| Cutting Height (mm) | 4.75 |
| Cutting Height (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 4 |
