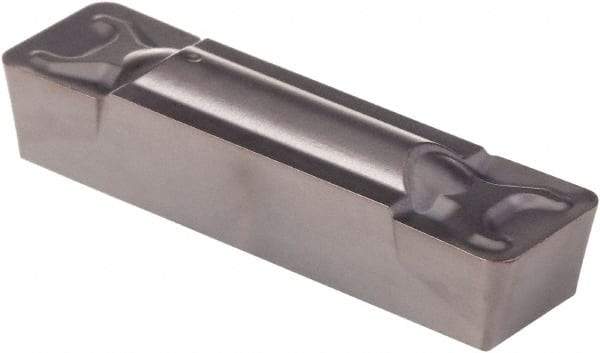

Kennametal - 0805G GMN Grade KCU25, 8.05mm Cutting Width Carbide Grooving Insert - 6.4mm Max Depth of Cut, Neutral, 1.19mm Corner Radius, AlTiN Finish
Item #: 58499773
Brand: Kennametal
Model #: 4114331
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | G |
| Insert Size | 0805 |
| Material | Carbide |
| Cutting Width (mm) | 8.05 |
| Cutting Width (Decimal Inch) | 0.3169 |
| Maximum Depth of Cut (mm) | 6.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.70 |
| Cutting Height (Decimal Inch) | 0.2638 |
| Insert Seat Size | 8 |
| Chipbreaker | GMN |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 1.19 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | PVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1810 |
| Series | A4 |
| Manufacturers Catalog Number | A4G0805M08U12GMN |
| Included Angle | 90 |
