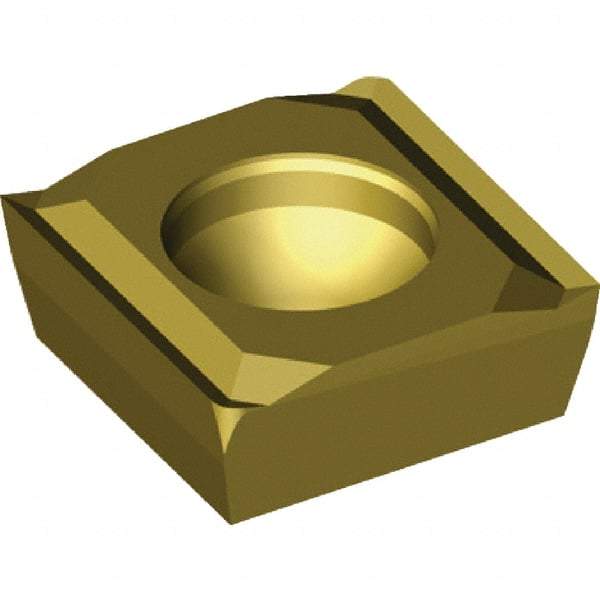

Kennametal - SPHX150504 R22 Grade KM1 Carbide Indexable Drill Insert - Uncoated, Square, 5/8" Inscribed Circle
Item #: 58498981
Brand: Kennametal
Model #: 1208833
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | SPHX |
| Insert Size | 150504 |
| Material | Carbide |
| Manufacturer's Grade | KM1 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (mm) | 5.95 |
| Thickness (Decimal Inch) | 0.2343 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Shape | Square |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Coating | Uncoated |
| Cutting Direction | Right Hand |
| Chipbreaker | R22 |
