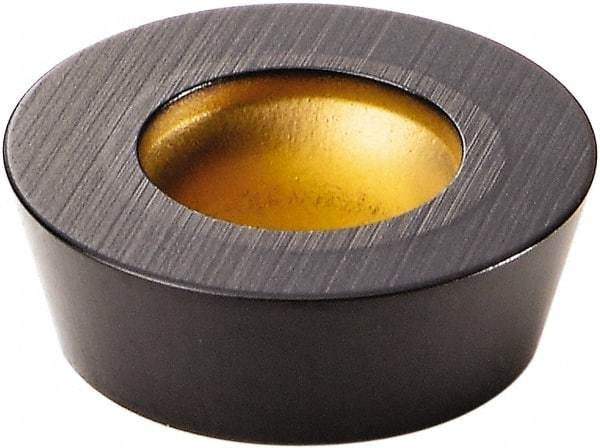

Kennametal - RDHX0702M0 Grade KCPM20 Carbide Milling Insert - TiN/MT/TiCN/Al2O3 Finish, 3/32" Thick, 7mm Inscribed Circle
Item #: 58491358
Brand: Kennametal
Model #: 3876464
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RDHX |
| Insert Size | 0702M0 |
| Material | Carbide |
| Manufacturer's Grade | KCPM20 |
| Coating | TiN/MT/TiCN/Al2O3 |
| Inscribed Circle (mm) | 7.00 |
| Inscribed Circle (Decimal Inch) | 0.2756 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Hole Diameter (mm) | 2.75 |
| Hole Diameter (Decimal Inch) | 0.1082 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Neutral |
| Cutting Edge Style | Honed T-Land |
| ISO Number | RDHX0702M0SLN |
