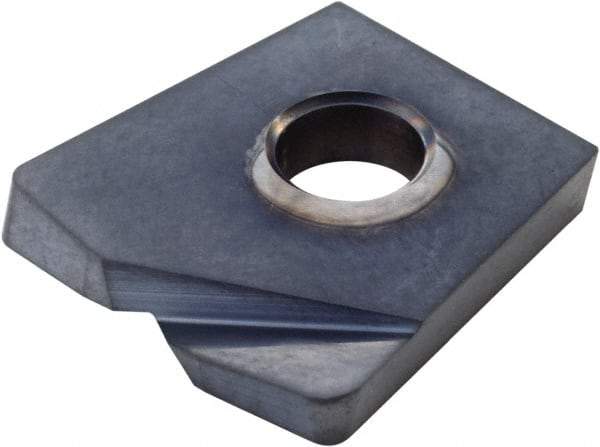

Kennametal - KDMT0604 Grade KC515M Carbide Milling Insert - TiAlN Finish, 0.063" Thick
Item #: 58490467
Brand: Kennametal
Model #: 4177622
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | KDMT |
| Insert Size | 0604 |
| Material | Carbide |
| Manufacturer's Grade | KC515M |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.2362 |
| Length (Decimal Inch) | 0.3150 |
| Thickness (Decimal Inch) | 0.0630 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Rake Angle | 25 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Ball Nose Squared Tip |
| Insert Hand | Right Hand |
| ISO Number | KDMT0604SRHF |
