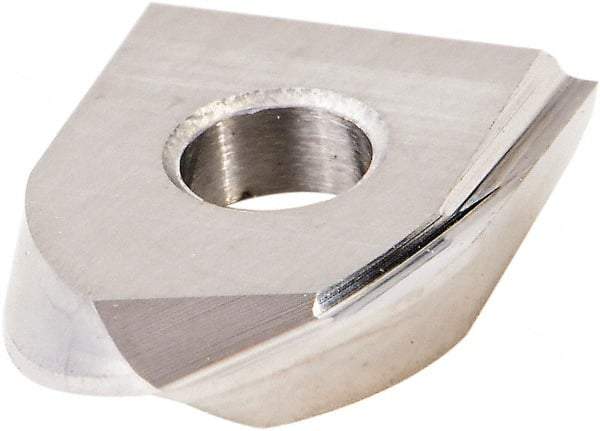

Kennametal - KDMB0375M0 Grade K115M Carbide Milling Insert - Uncoated, 0.0984" Thick, 4.76mm Corner Radius
Item #: 58490384
Brand: Kennametal
Model #: 4177652
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | KDMB |
| Insert Size | 0375M0 |
| Material | Carbide |
| Manufacturer's Grade | K115M |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.0984 |
| Corner Radius (Decimal Inch) | 0.1875 |
| Corner Radius (mm) | 4.76 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Rake Angle | 15 |
| Rake | Positive |
| Shape | Ball Nose |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 4.76 |
| Maximum Depth of Cut (Decimal Inch) | 0.1875 |
| ISO Number | KDMB0375M0ERLD |
