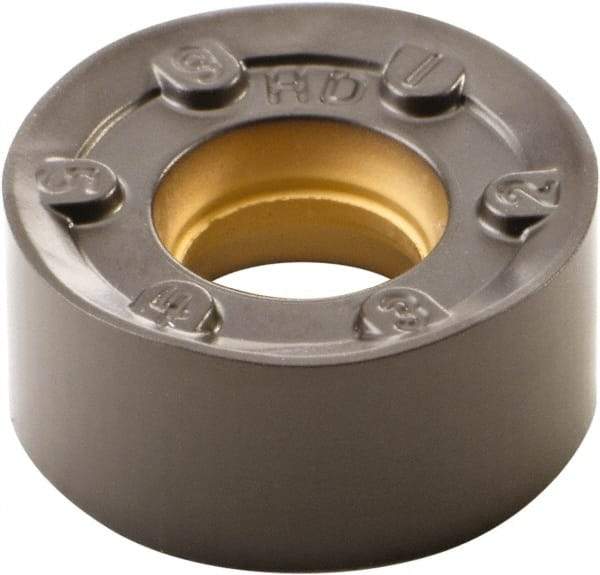

Kennametal - RNPJ1204M0 HD Grade KCPM20 Carbide Milling Insert - TiN/MT/TiCN/Al2O3 Finish, 0.187" Thick, 12mm Inscribed Circle
Item #: 58490285
Brand: Kennametal
Model #: 5274694
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RNPJ |
| Insert Size | 1204M0 |
| Material | Carbide |
| Manufacturer's Grade | KCPM20 |
| Coating | TiN/MT/TiCN/Al2O3 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Decimal Inch) | 0.1870 |
| Hole Diameter (mm) | 5.00 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Round |
| Chipbreaker | HD |
| ISO Number | RNPJ1204M0SHD |
