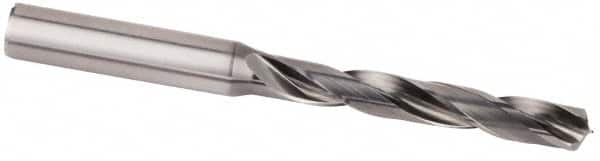

Kennametal - 5.25mm 135° Solid Carbide Jobber Drill - Multilayer AlCr Finish, Right Hand Cut, Spiral Flute, Straight Shank, 82mm OAL, Standard Point
Item #: 58475070
Brand: Kennametal
Model #: 4052168
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Aluminum Chromium (AlCr) is a blended coating for high performance applications. It is extremely wear resistant and used in cast iron applications due to its high hot hardness
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 5.25 |
| Drill Bit Size (Decimal Inch) | 0.2067 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer AlCr |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 44.00 |
| Flute Length (Decimal Inch) | 1.7323 |
| Overall Length (mm) | 82.00 |
| Overall Length (Decimal Inch) | 3.2283 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | Standard |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Maximum Drilling Depth (Decimal Inch) | 1.3780 |
| Maximum Drilling Depth (mm) | 35.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 36.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Specification Designation | DIN |
| Drill Point Length (mm) | 1.43 |
| Drill Point Length (Decimal Inch) | 0.0563 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | 0.004 to 0.016 |
| Drill Bit Diameter Tolerance (Decimal Inch) | 0.0002 to 0.0006 |
| Number of Flutes | 2 |
| Specification Number | DIN 6535 |
| Material Grade | KCK10 |
| Series/List | B255A-YPC |
