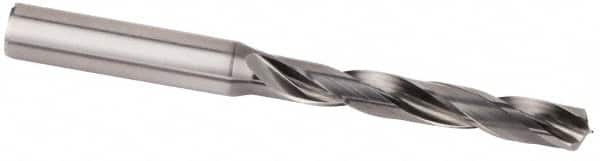

Kennametal - 7mm 135° Spiral Flute Solid Carbide Screw Machine Drill Bit - Multilayer AlCr Finish, Right Hand Cut, 34mm Flute Length, 79mm OAL, Standard Point, Straight Shank, Through Coolant
Item #: 58472267
Brand: Kennametal
Model #: 4052010
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Aluminum Chromium (AlCr) is a blended coating for high performance applications. It is extremely heat and wear resistant and used in cast iron applications due to its high hot hardness.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2756 |
| Drill Bit Size (mm) | 7.00 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer AlCr |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 34.00 |
| Flute Length (Decimal Inch) | 1.3386 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 24.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.9449 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 36.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 1.86 |
| Drill Point Length (Decimal Inch) | 0.0731 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.006 to +0.021 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0002 to +0.0008 |
| Drill Tip Finish/Coating | None |
| Specification Number | DIN 6535 |
| Series/List | B254A-YPC |
| Length Type | Stub |
