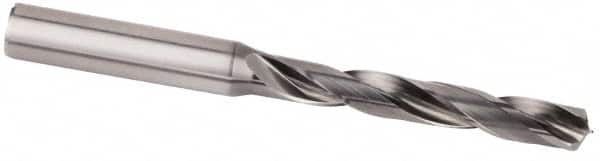

Kennametal - 19mm 135° Spiral Flute Solid Carbide Screw Machine Drill Bit - Multilayer AlCr Finish, Right Hand Cut, 79mm Flute Length, 131mm OAL, Standard Point, Straight Shank, Through Coolant
Item #: 58471574
Brand: Kennametal
Model #: 4052116
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Aluminum Chromium (AlCr) is a blended coating for high performance applications. It is extremely heat and wear resistant and used in cast iron applications due to its high hot hardness.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.7480 |
| Drill Bit Size (mm) | 19.00 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer AlCr |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 79.00 |
| Flute Length (Decimal Inch) | 3.1102 |
| Overall Length (mm) | 131.00 |
| Overall Length (Decimal Inch) | 5.1575 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 55.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.1654 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 4.70 |
| Drill Point Length (Decimal Inch) | 0.1850 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | 0.008 to 0.029 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0003 to +0.0011 |
| Drill Tip Finish/Coating | None |
| Specification Number | DIN 6535 |
| Series/List | B254A-YPC |
| Length Type | Stub |
