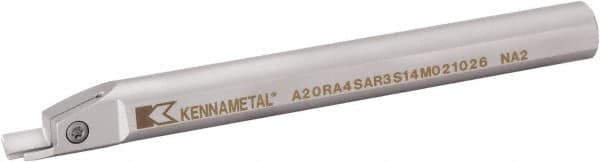

Kennametal - A4SS, Internal, Right Hand, 12mm Max Depth of Cut, 2mm Min Groove Width, Indexable Grooving Tool Holder - A4G0200M2SP02B Insert Compatibility, 1" Shank Width, 203.5mm OAL, Through Coolant
Item #: 58466871
Brand: Kennametal
Model #: 3871030
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Overall Length (mm) | 203.50 |
| Overall Length (Decimal Inch) | 8.0118 |
| Toolholder Style | A4SS |
| Insert Compatibility | A4G0200M2SP02B |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | A4 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Grooving; Turning |
| Insert Holding Method | Clamp |
| Insert Seat Size | 2S |
| Minimum Hole Diameter (mm) | 26.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.0236 |
| Maximum Workpiece Diameter (mm) | 36.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.4173 |
| Maximum Groove Outside Diameter (Decimal Inch) | 1.4170 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 1.0240 |
| Center to Cutting Edge (mm) | 12.04 |
| Center to Cutting Edge (Decimal Inch) | 0.4740 |
| Head Length (mm) | 38.40 |
| Head Length (Decimal Inch) | 1.5118 |
| Shank Length (mm) | 165.10 |
| Shank Length (Decimal Inch) | 6.5000 |
| Complete Insert Compatibility | A4G0200M2SP02B |
