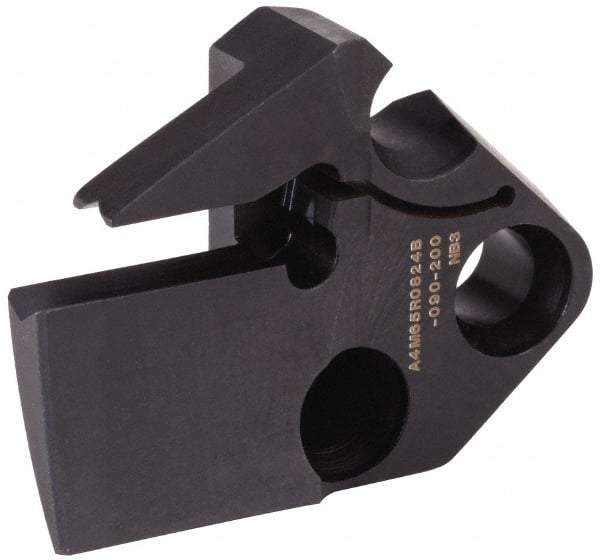

Kennametal - 6mm Groove Width, 24mm Max Depth of Cut, Right Hand Cut, A4M-B Indexable Grooving Blade - 6 Seat Size, A4G0600M06P04GMP Insert Style, Series A4
Item #: 58466731
Brand: Kennametal
Model #: 3557175
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 24.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9449 |
| Blade Style | A4M-B |
| Series | A4 |
| Minimum Workpiece Diameter (mm) | 70.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 2.7559 |
| Maximum Workpiece Diameter (mm) | 112.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 4.4094 |
| Blade Height (mm) | 42.10 |
| Blade Height (Decimal Inch) | 1.6575 |
| Insert Style | A4G0600M06P04GMP |
| Insert Seat Size | 6 |
| Cartridge Size | 65 |
| Complete Insert Compatibility | A4G0600M06P04GMP |
