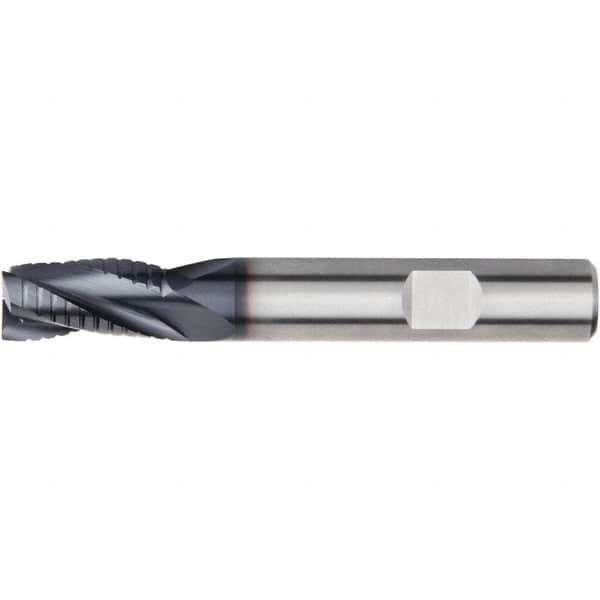

Kennametal - 6mm Diam, 13mm LOC, 3 Flute Solid Carbide 45° Corner Chamfer Roughing End Mill - 57mm OAL, 6mm Shank Diam, Single End, Centercutting, 30° Helix
Item #: 58454455
Brand: Kennametal
Model #: 4046460
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2362 |
| Number of Flutes | 3 |
| Length of Cut (mm) | 13.00 |
| Length of Cut (Decimal Inch) | 0.5118 |
| Shank Diameter (mm) | 6.00 |
| End Type | Corner Chamfer |
| Material | Solid Carbide |
| Overall Length (mm) | 57.00 |
| Centercutting | Center Cutting |
| Helix Angle | 30.00 |
| Extended Reach | No |
| Chamfer Width (mm) | 0.10 |
| Chamfer Width (Decimal Inch) | 0.0039 |
| Coolant Induced | No |
| Chamfer Angle | 45 |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Long |
| Flute Type | Spiral |
| Helix Style | Medium |
| Mill Diameter Tolerance (mm) | +0.000/-0.075 |
| Shank Diameter Tolerance (mm) | +0.000/-0.008 |
| Overall Length (Decimal Inch) | 2.2440 |
| Series/List | F3BH |
