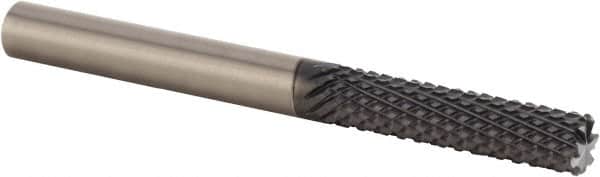

Kennametal - 3/8" Diam, 3/4" LOC, Burr End, Solid Carbide Diamond Pattern Router Bit - Right Hand Cut, 3-1/4" OAL, 3/8" Shank Diam, Use on Composites, Fiberglass
Item #: 58453689
Brand: Kennametal
Model #: 4137461
Exact Tooling IR#: 04
Features and Benefits
Burr end router bits are used for bottom cutting and producing floor finishes on the part where minimal material needs to be removed. They are used in very light applications.
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
Diamond (PCD) coating is one of the hardest coatings. It is commonly used on concrete, fiberglass, plastic, stone, aluminum alloy and extremely difficult-to-machine materials.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 9.53 |
| Cutting Diameter (Inch) | 3/8 |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| End Type | Burr |
| Length of Cut (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 3/4 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 3-1/4 |
| Material | Solid Carbide |
| Finish/Coating | Diamond |
| Material Application | Composites; Fiberglass |
| Cutting Direction | Right Hand |
| Shank Length (Decimal Inch) | 2.2970 |
