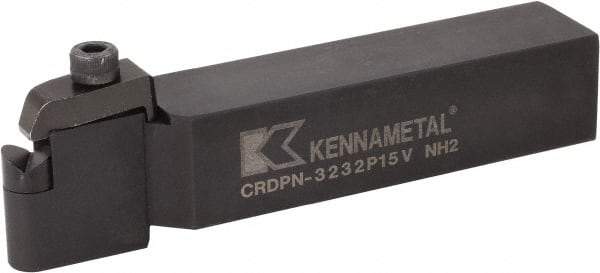

Kennametal - CRDP, Neutral Cut, 0° Lead Angle, 32mm Shank Height x 32mm Shank Width, Neutral Rake Indexable Turning Toolholder - 171.25mm OAL, RPGX151000 Insert Compatibility, Series V-Bottom Round
Item #: 58452178
Brand: Kennametal
Model #: 3642252
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | CRDP |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | V-Bottom Round |
| Lead Angle | 0 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 171.25 |
| Overall Length (Decimal Inch) | 6.7421 |
| Insert Compatibility | RPGX151000 |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 38.05 |
| Head Length (Decimal Inch) | 1.4980 |
