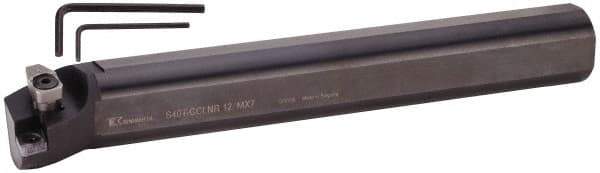

Kennametal - 55mm Min Bore Diam, 300mm OAL, 40mm Shank Diam, S-CCLN-MX Indexable Boring Bar - 40mm Max Bore Depth, CN.. 120708 Insert, Clamp Holding Method
Item #: 58448101
Brand: Kennametal
Model #: 1289077
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-CCLN-MX |
| Series | MTS |
| Minimum Bore Diameter (mm) | 55.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.1654 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 40.00 |
| Maximum Bore Depth (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | CN.. 120708 |
| Through Coolant | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Lead Angle | -5 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Thickness (Inch) | 5/16 |
| Insert Thickness (Decimal Inch) | 0.3125 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -6 |
| Complete Insert Compatibility | CN.. X120708 |
| Toolholder Material | Steel |
