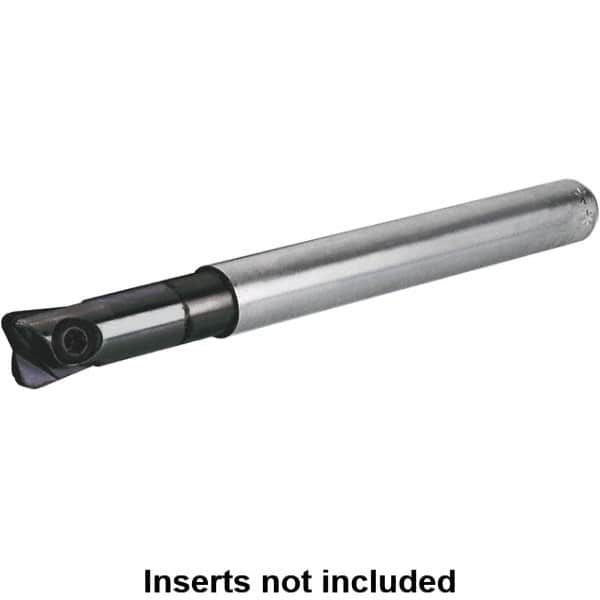

Kennametal - 25mm Cut Diam, 6mm Max Depth of Cut, 25mm Shank Diam, 192mm OAL, Indexable Ball Nose End Mill - 72mm Head Length, Straight Shank, KDMT Toolholder, KDM 25.. Insert
Item #: 58446683
Brand: Kennametal
Model #: 1918697
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDM 25.. |
| Toolholder Style | KDMT |
| Series | KDMT |
| Overall Length (mm) | 192.00 |
| Overall Length (Decimal Inch) | 7.5591 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 72.00 |
| Head Length (Decimal Inch) | 2.8346 |
| Neck Diameter (Decimal Inch) | 0.8819 |
| Maximum RPM | 40000 |
