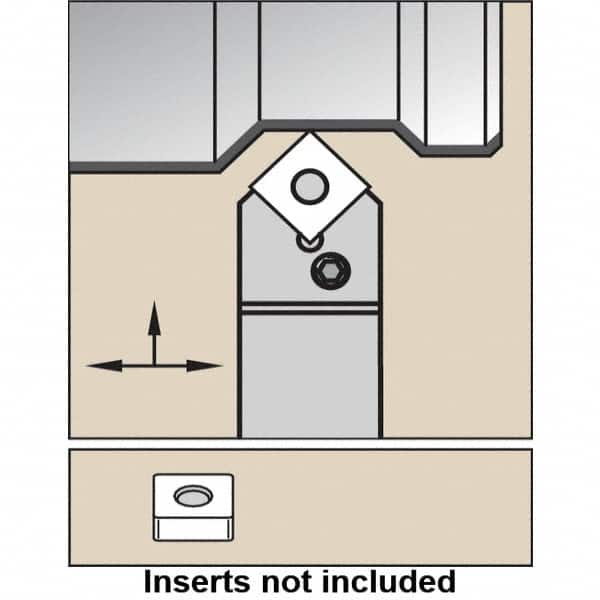

Kennametal - PSDN, Neutral Cut, 45° Lead Angle, 32mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, SN..1204.. Insert Compatibility, Series Kenlever
Item #: 58446030
Brand: Kennametal
Model #: 1244687
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | PSDN |
| Rake | Negative |
| Rake Angle | -7 |
| Series | Kenlever |
| Lead Angle | 45 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | SN..1204.. |
| Multi-Use Tool | No |
| Back of Bar to Cutting Edge (mm) | 12.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4921 |
| Head Length (mm) | 28.00 |
| Head Length (Decimal Inch) | 1.1024 |
| Insert Inscribed Circle (Inch) | 1/2 |
