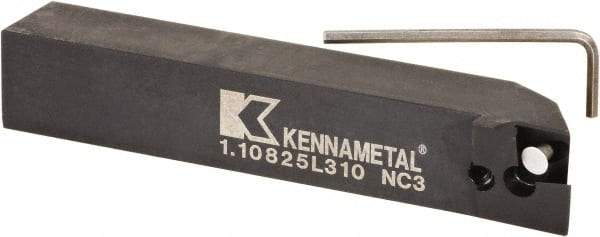

Kennametal - 1.108...93DEG, Left Hand Cut, -3° Lead Angle, 25mm Shank Height x 25mm Shank Width, Positive Rake Indexable Turning Toolholder - 150mm OAL, D2FIX15..LHP/FN/MS Insert Compatibility, Series Fix-Perfect
Item #: 58445917
Brand: Kennametal
Model #: 1245245
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | 1.108...93DEG |
| Rake | Positive |
| Rake Angle | 5 |
| Series | Fix-Perfect |
| Lead Angle | -3 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | D2FIX15..LHP/FN/MS |
| Multi-Use Tool | No |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 26.00 |
| Head Length (Decimal Inch) | 1.0236 |
