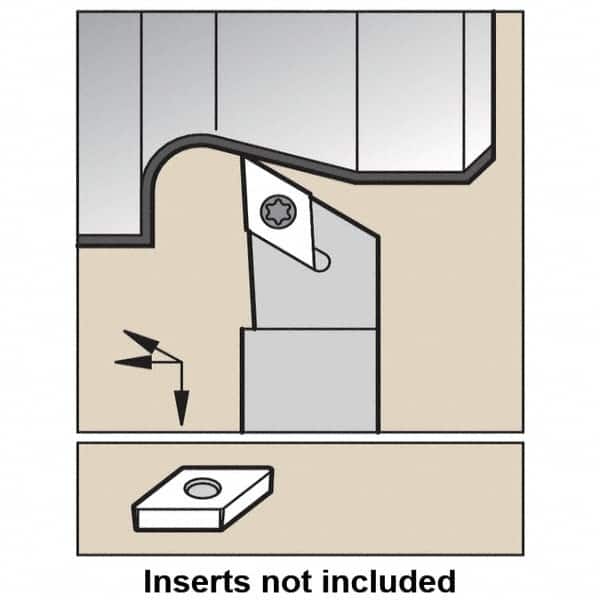

Kennametal - SDJC, Right Hand Cut, -3° Lead Angle, 8mm Shank Height x 8mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, DC.. 0702.. Insert Compatibility, Series Screw-On
Item #: 58445750
Brand: Kennametal
Model #: 1772157
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SDJC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Screw-On |
| Lead Angle | -3 |
| Shank Width (mm) | 8.00 |
| Shank Width (Decimal Inch) | 0.3150 |
| Shank Height (mm) | 8.00 |
| Shank Height (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | DC.. 0702.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 8.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3150 |
| Head Length (mm) | 16.00 |
| Head Length (Decimal Inch) | 0.6299 |
| Insert Inscribed Circle (Inch) | 1/4 |
