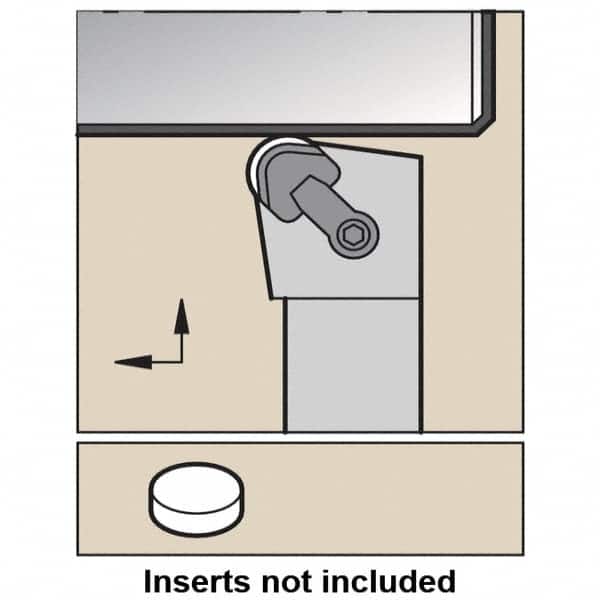

Kennametal - CRGN, Right Hand Cut, 0° Lead Angle, 1-1/2" Shank Height x 1-1/2" Shank Width, Negative Rake Indexable Turning Toolholder - 8" OAL, RNG 45 Insert Compatibility, Series Kendex
Item #: 58445115
Brand: Kennametal
Model #: 3870038
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CRGN |
| Rake | Negative |
| Rake Angle | -5 |
| Series | Kendex |
| Lead Angle | 0 |
| Shank Width (Inch) | 1-1/2 |
| Shank Width (mm) | 38.10 |
| Shank Width (Decimal Inch) | 1.5000 |
| Shank Height (Inch) | 1-1/2 |
| Shank Height (mm) | 38.10 |
| Shank Height (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 8 |
| Overall Length (mm) | 203.20 |
| Overall Length (Decimal Inch) | 8.0000 |
| Insert Compatibility | RNG 45 |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 50.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.0000 |
| Head Length (mm) | 31.75 |
| Head Length (Decimal Inch) | 1.2500 |
