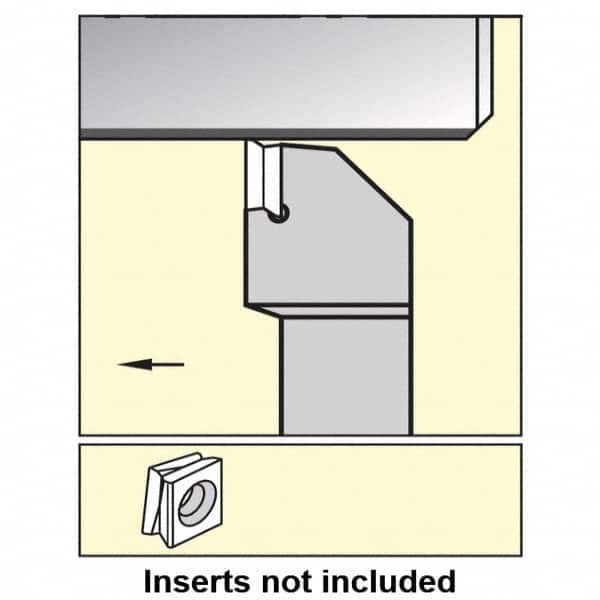

Kennametal - 1.780...90DEG, Right Hand Cut, 0° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, 1.81201 R... Insert Compatibility, Series Fix-Perfect
Item #: 58444977
Brand: Kennametal
Model #: 4132634
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | 1.780...90DEG |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Fix-Perfect |
| Lead Angle | 0 |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | 1.81201 R... |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 26.00 |
| Head Length (Decimal Inch) | 1.0236 |
| Toolholder Material | Steel |
