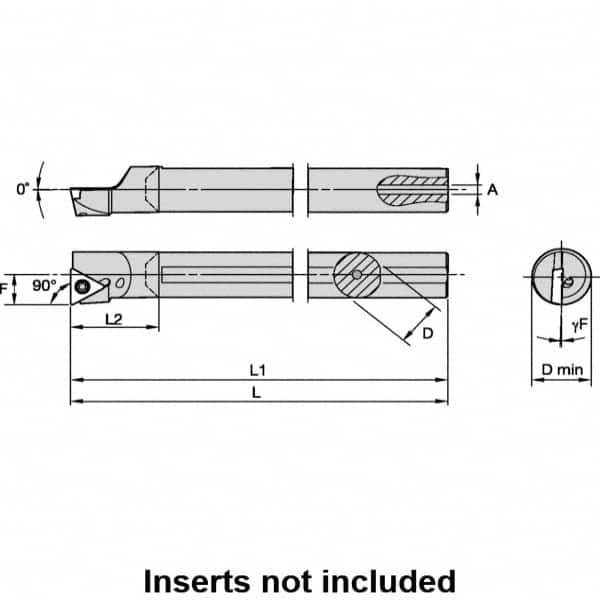

Kennametal - 16mm Min Bore Diam, 183.17mm OAL, 12mm Shank Diam, L-STFP Indexable Boring Bar - 24.35mm Max Bore Depth, TP.. 110204 Insert, Screw Holding Method
Item #: 58443029
Brand: Kennametal
Model #: 3331123
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | L-STFP |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 16.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 24.35 |
| Maximum Bore Depth (Decimal Inch) | 0.9587 |
| Overall Length (mm) | 183.17 |
| Overall Length (Decimal Inch) | 7.2114 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | TP.. 110204 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 0 |
| Center to Cutting Edge (mm) | 9.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3543 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 3.97 |
| Coolant Hole Diameter (Decimal Inch) | 0.1563 |
| Complete Insert Compatibility | TPMT 110204.. |
| Toolholder Material | Heavy Metal |
