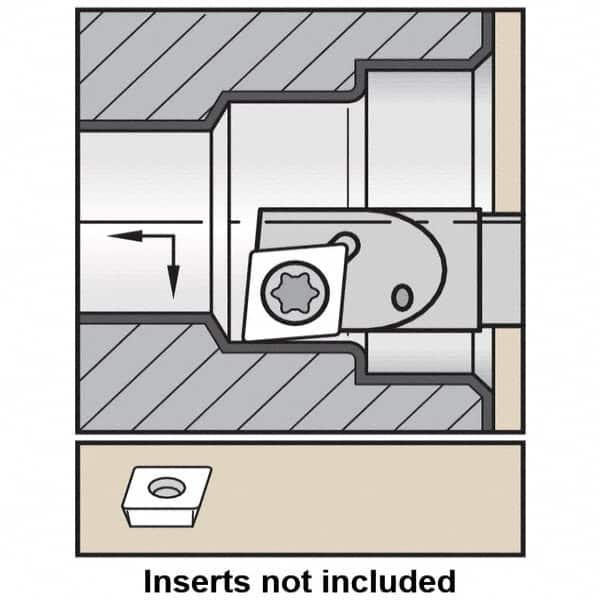

Kennametal - 5.18mm Min Bore Diam, 70mm OAL, 12mm Shank Diam, A-SCLD-S Indexable Boring Bar - 12.7mm Max Bore Depth, CD.. S4T002 Insert, Screw Holding Method
Item #: 58442831
Brand: Kennametal
Model #: 1289130
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLD-S |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 5.18 |
| Minimum Bore Diameter (Decimal Inch) | 0.2039 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 12.70 |
| Maximum Bore Depth (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | CD.. S4T002 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | -5 |
| Center to Cutting Edge (mm) | 2.64 |
| Center to Cutting Edge (Decimal Inch) | 0.1039 |
| Rake Angle | 5 |
| Coolant Hole Diameter (mm) | 1.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0394 |
| Complete Insert Compatibility | CD.. S4T002 |
| Toolholder Material | Steel |
