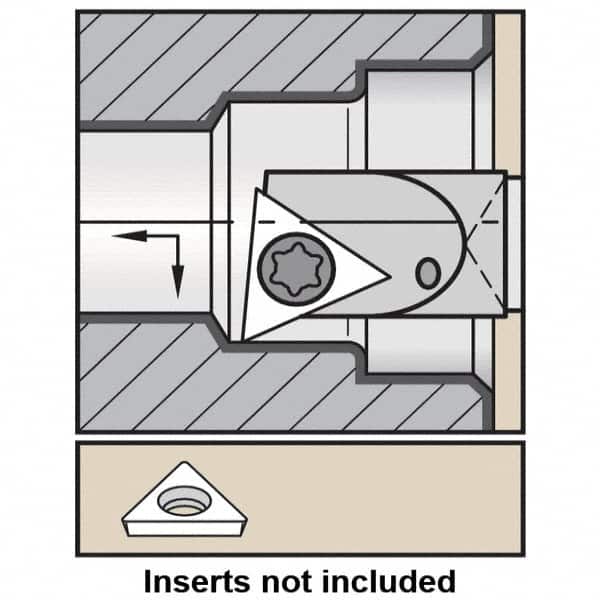

Kennametal - 9.16mm Min Bore Diam, 150mm OAL, 8mm Shank Diam, E-STLD Indexable Boring Bar - TD.. 07T1202 Insert, Screw Holding Method
Item #: 58442807
Brand: Kennametal
Model #: 1270992
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-STLD |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 9.16 |
| Minimum Bore Diameter (Decimal Inch) | 0.3606 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | TD.. 07T1202 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -5 |
| Center to Cutting Edge (mm) | 4.80 |
| Center to Cutting Edge (Decimal Inch) | 0.1890 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 2.40 |
| Coolant Hole Diameter (Decimal Inch) | 0.0945 |
| Complete Insert Compatibility | TD.. 07T1202 |
| Toolholder Material | Carbide |
