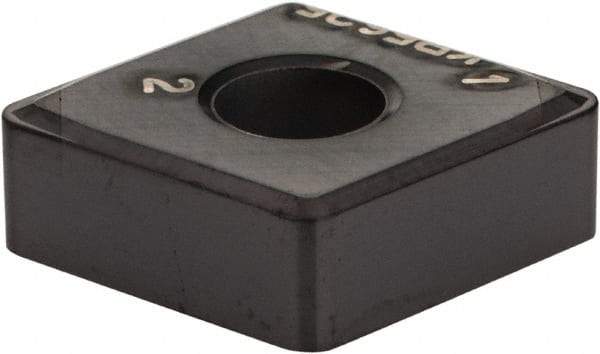

Kennametal - CNGM433 CB1 Grade KB5625 PCBN Turning Insert - TiAlN Finish, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 58441692
Brand: Kennametal
Model #: 4096479
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CNGM |
| Insert Size | 433 |
| Material | PCBN |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5077 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KB5625 |
| Coating | TiAlN |
| Chip Breaker | CB1 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNGM120412S01325MTCB1 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kenloc |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
