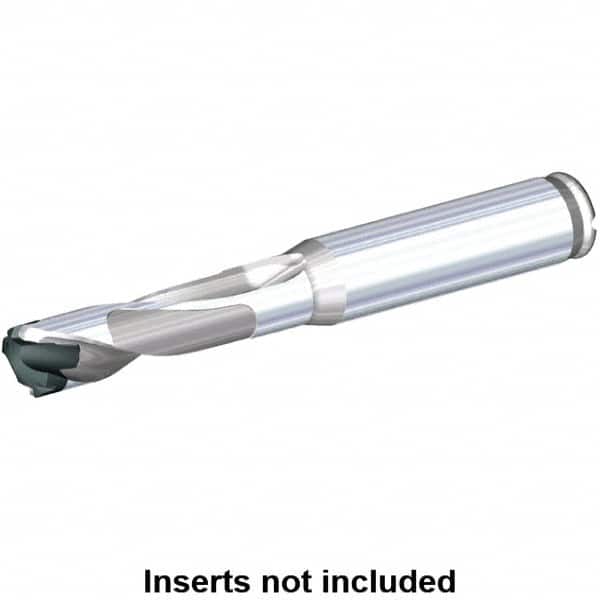

Kennametal - 11.5 to 11.99mm Diam, 1.5xD, 18mm Max Depth, 12mm Shank Diam, 31mm Flute, 80mm OAL, Replaceable Tip Drill - KTIP1150HPM Insert, M Seat Size, KTIP Toolholder, Series KenTIP
Item #: 58441502
Brand: Kennametal
Model #: 4129450
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 11.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4528 |
| Maximum Drill Diameter (mm) | 11.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.4720 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.7087 |
| Maximum Drill Depth (mm) | 18.00 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | KTIP1150HPM |
| Insert Seat Size | M |
| Toolholder Style | KTIP |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (mm) | 2.00 |
| Tip Length (Decimal Inch) | 0.0787 |
| Flute Length (mm) | 31.00 |
| Flute Length (Decimal Inch) | 1.2205 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Shank Length (mm) | 46.00 |
| Shank Length (Decimal Inch) | 1.8110 |
