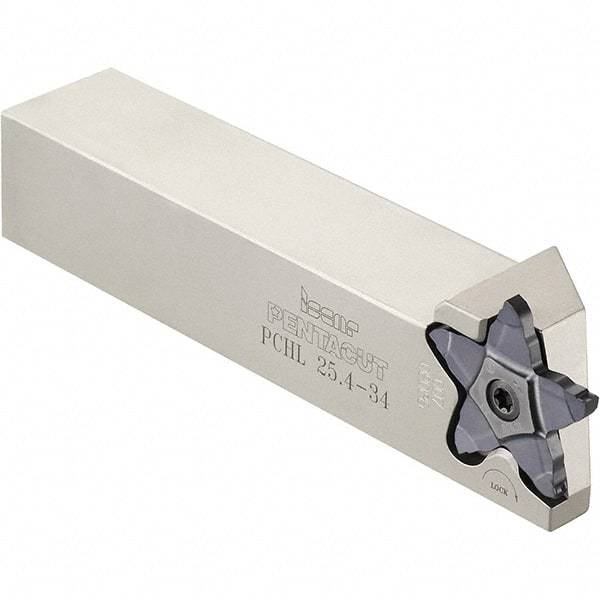

Iscar - External Thread, 0.3937" Max Depth of Cut, 1.5mm Min Groove Width, 5" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, PENTA 34.. Insert Style, PCH Toolholder Style, Series PentaCut
Item #: 58419623
Brand: Iscar
Model #: 2302159
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Minimum Groove Width (mm) | 1.50 |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 5.0000 |
| Series | PentaCut |
| Toolholder Style | PCH |
| Insert Compatibility | PENTA 34.. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6800 |
| Head Length (Decimal Inch) | 1.2200 |
| Shank Length (Decimal Inch) | 3.7800 |
| Complete Insert Compatibility | PENTA 34F-R/L; PENTA 34N-C; PENTA 34N-PB; PENTA 34R/L-C; PENTA 34R/L-PB |
