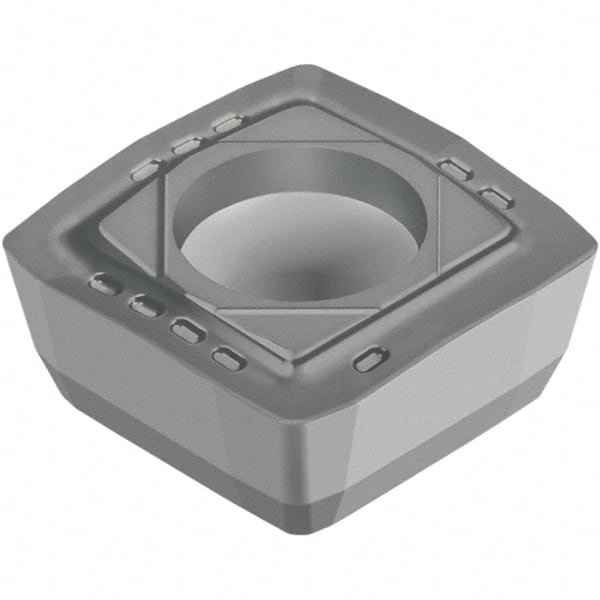

Indexable Drill Insert: P48448A57 WXP40, Carbide Coated, 90 ° Square
Item #: 58409103
Brand: Walter
Model #: 6154469
Product Specifications
| Insert Style | P484 |
| Insert Size Code | 48 |
| Insert Material | Solid Carbide |
| Material Grade | S30; M30; P40 |
| Manufacturer Grade | WXP40 |
| Inscribed Circle (Decimal Inch) | 0.2340 |
| Inscribed Circle (mm) | 5.94 |
| Cutting Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0130 |
| Corner Radius (mm) | 0.33 |
| Chipbreaker | A57 |
| Series | Tiger Tec |
| Coating Process | PVD |
| Shape | Square |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | P4841C-2R-A57 WXP40 |
| Standards | ISO; ANSI |
| Insert Size | 2 |
| Width (Mm - 2 Decimals) | 5.95 |
| Width (Decimal Inch - 4 Decimals) | 0.2300 |
| Length (Decimal Inch - 4 Decimals) | 0.2300 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0940 |
| Coating/Finish | Coated |
