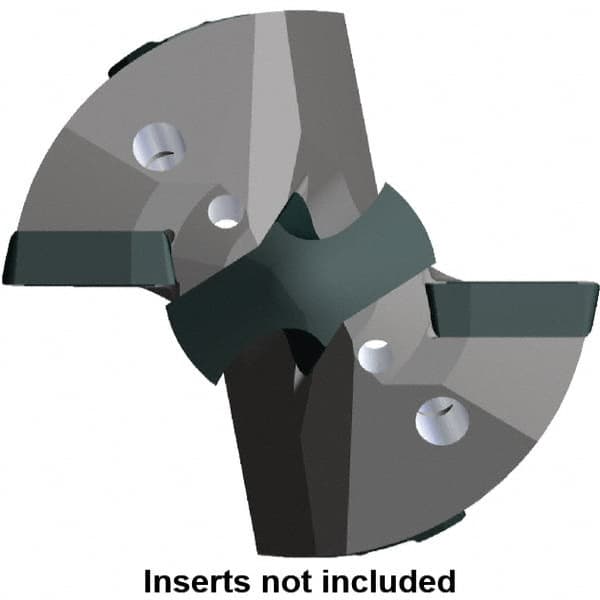

Kennametal - Series KSEM Plus, Head Connection FDS36, 38.1mm Max Diam Pilot Insert Drill Head - 15mm Pilot Drill Diam, 24.99mm Head Length
Item #: 58401811
Brand: Kennametal
Model #: 5116037
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS36 |
| Pilot Type | Pilot Insert |
| Maximum Drill Diameter (mm) | 38.10 |
| Maximum Drill Diameter (Decimal Inch) | 1.5000 |
| Pilot Drill Diameter (mm) | 15.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.5906 |
| Head Length (mm) | 24.99 |
| Head Length (Decimal Inch) | 0.9840 |
| Drill Head Style | B1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Head Length to Pilot Tip (Decimal Inch) | 1.1110 |
| Head Length to Pilot Tip (mm) | 28.22 |
| Includes | Insert screw; Wrench |
