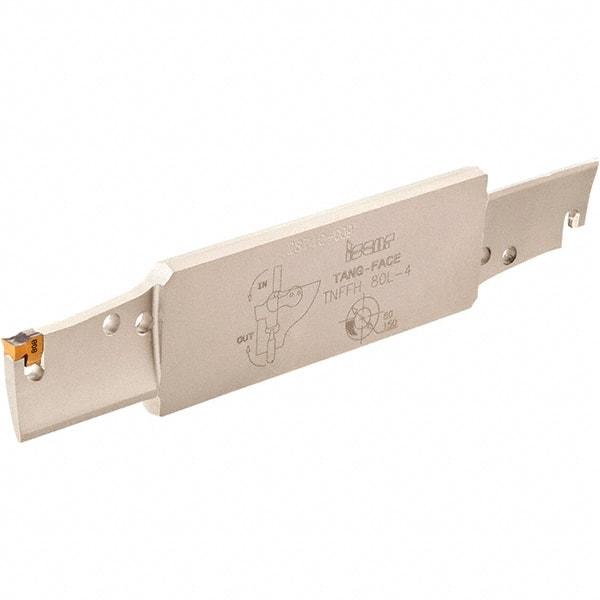

Iscar - 4" Groove Width, 27mm Max Depth of Cut, Right Hand Cut, TNFFA Indexable Grooving Blade - TNF-M Insert Style, Series TangFace
Item #: 58399593
Brand: Iscar
Model #: 2302418
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 27.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0630 |
| Blade Style | TNFFA |
| Series | TangFace |
| Minimum Workpiece Diameter (mm) | 80.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 3.1496 |
| Maximum Workpiece Diameter (mm) | 130.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 5.1181 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (mm) | 14.80 |
| Blade Width (Decimal Inch) | 0.5827 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Insert Style | TNF-M |
| Complete Insert Compatibility | TNF 3M |
