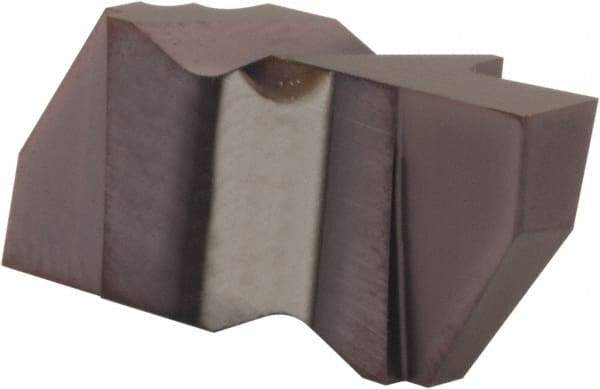

Hertel - 094IG Grade HC225, 2.39mm Cutting Width Carbide Grooving Insert - 0.18" Max Depth of Cut, Left Hand, .005 to .010" Corner Radius, TiAlN Finish
Item #: 58395062
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | IG |
| Insert Size | 094 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Manufacturer's Grade | HC225 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Lead Angle | 0 |
| Relief Angle | 3 |
| Insert Seat Size | 3 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | .005-.010 |
| Coating Process | PVD |
| Series | HertelNotch |
| Rake | Neutral |
