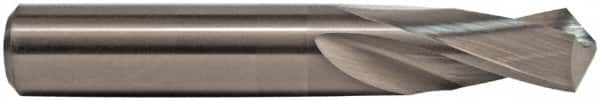

M.A. Ford - #50 118° Spiral Flute Solid Carbide Screw Machine Drill Bit - TiCN Finish, Right Hand Cut, 3/8" Flute Length, 1-1/2" OAL, Straight Shank
Item #: 58253220
Brand: M.A. Ford
Model #: 20607000C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.0700 |
| Drill Bit Size (Wire) | #50 |
| Drill Point Angle | 118 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiCN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 3/8 |
| Flute Length (Decimal Inch) | 0.3750 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (Decimal Inch) | 0.0700 |
| Specification Designation | Not Specified |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Number of Margins | 1.000 |
| Series/List | 206 |
| Additional Information | Modified Standard, Non-Returnable & Non-Cancelable |
