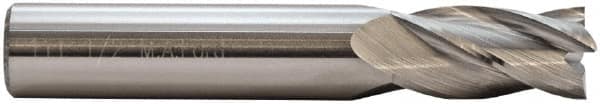

M.A. Ford - 5/16", 13/16" LOC, 5/16" Shank Diam, 2-1/2" OAL, 4 Flute, Solid Carbide Square End Mill - Single End, ALtima Blaze Finish, Spiral Flute, 30° Helix, Centercutting, Right Hand Cut, Right Hand Flute
Item #: 58247628
Brand: M.A. Ford
Model #: 11131250B
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
ALtima Blaze, a form of (AlCrN), has a higher oxidation temperature than TiAlN. It is used on nickel alloys, titanium and other difficult-to-machine materials. ALtima Blaze is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 13/16 |
| Length of Cut (Decimal Inch) | 0.8125 |
| Material | Solid Carbide |
| Finish/Coating | ALtima Blaze |
| Shank Diameter (Inch) | 5/16 |
| Single or Double End | Single |
| Overall Length (Inch) | 2-1/2 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Flute Type | Spiral |
| Length Type | Std |
| Helix Style | Medium |
| Mill Diameter Tolerance (Decimal Inch) | +0.000 to -0.003 |
| Minimum Helix Angle | 30 |
| Maximum Helix Angle | 30 |
| Additional Information | Modified Standard, Non-Returnable & Non-Cancelable |
| Chipbreaker | No |
| Extended Reach | No |
