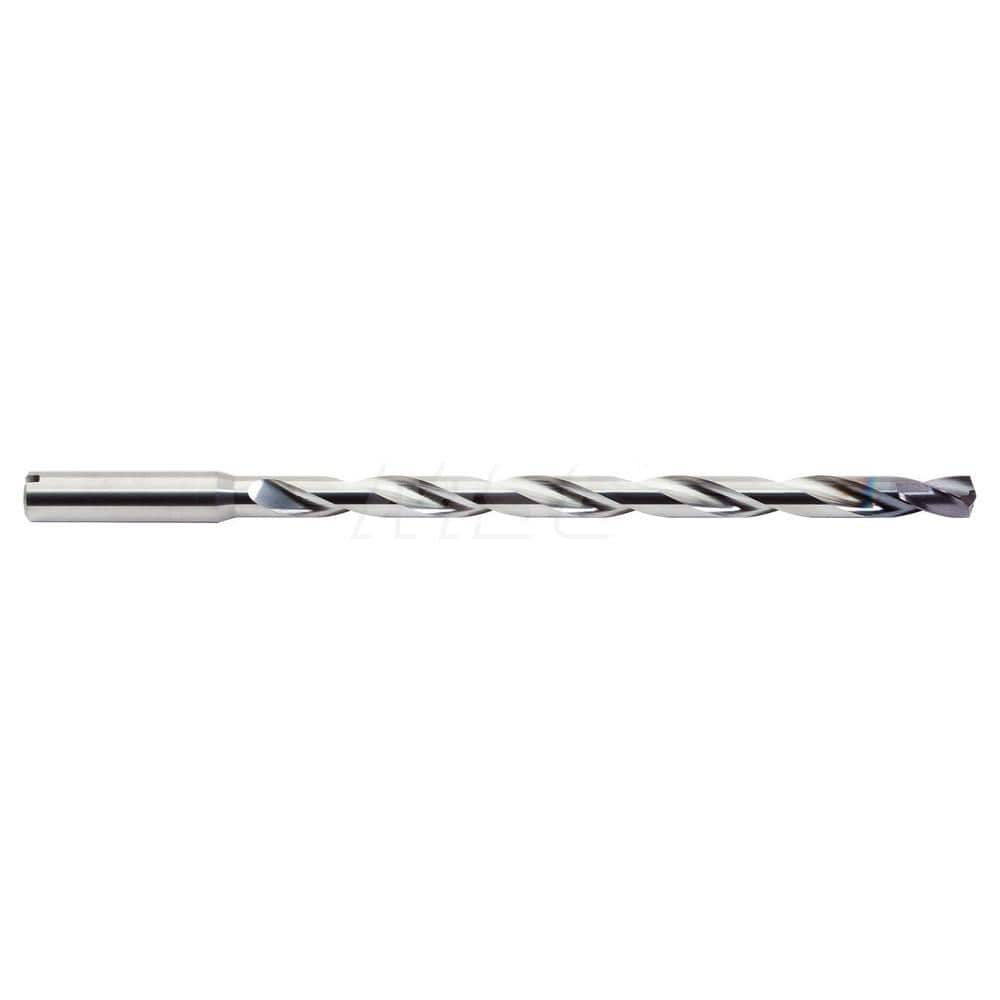

Extra Length Drill Bit: 0.315″ Dia, 142 °, Solid Carbide TiN Finish, 4.7″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series 2XDCE
Item #: 58226192
Brand: M.A. Ford?
Model #: 2XDCE3150A
Product Specifications
| Drill Bit Size (mm) | 8.00 |
| Overall Length (mm) | 163.00 |
| Flute Length (mm) | 120.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiN |
| Drill Point Angle | 142 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | 2XDCE |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | +0.000 to -0.015 mm |
| Number Of Flutes | 2 |
| Web Configuration | Tapered |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Hardened Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material | Aluminum; Non-Ferrous Metals; Stainless Steel; Cast Iron; Carbon Steel; High Temperature Alloy; Hardened Steel |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.3150 |
| Drill Point Length (mm) | 1.24 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Flute Length (Decimal Inch) | 4.7000 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (mm) | 96.00 |
