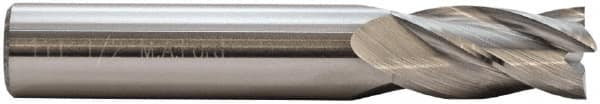

M.A. Ford - 8mm, 4 Flute, Solid Carbide, 0.5mm Corner Radius End Mill - 64mm OAL, 20mm LOC
Item #: 58207739
Brand: M.A. Ford
Model #: 11131501A
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
ALtima is a stronger designed AlTiN coating. is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.500 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | ALtima |
| Length of Cut (mm) | 20.00 |
| Length of Cut (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 8.00 |
| Overall Length (mm) | 64.00 |
| Additional Information | Modified Standard, Non-Returnable & Non-Cancelable |
