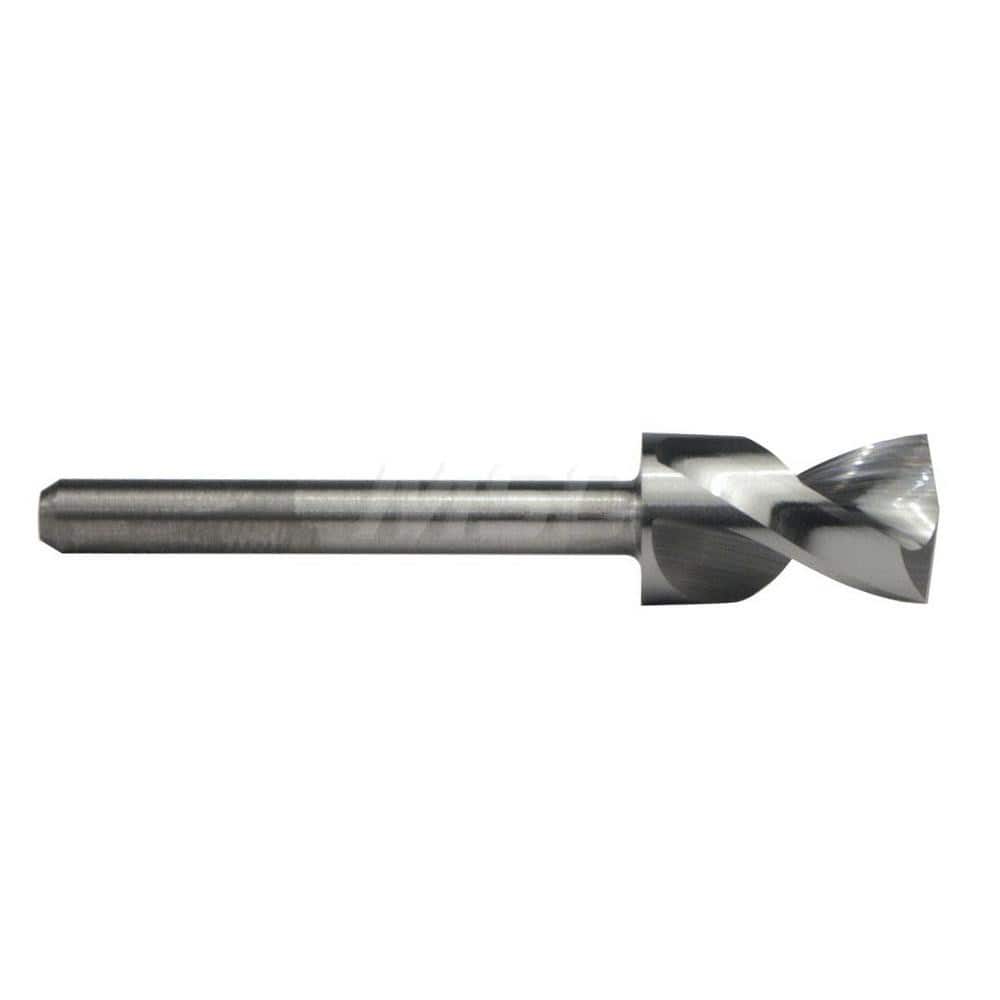

5.55mm, 165° Drill Point, 3.175mm Shank Diam, Fast Spiral Circuit Board Drill Bit 12.2mm Flute Length, 38mm OAL, Series 306
Item #: 58207499
Brand: M.A. Ford?
Model #: 30621850C
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2185 in; 5.55 mm |
| Drill Point Angle | 165 ? |
| Drill Bit Material | Carbide; Solid Carbide |
| Coated | Uncoated |
| Coating | Bright (Polished) |
| Flute Length | 0.48 in; 12.2 mm |
| Overall Length | 38.0 mm |
| Series | 306 |
| Drill Bit Diameter Tolerance | +0.000 to -0.013 mm |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Overall Length (mm) | 38.0 mm |
| Spiral Type | Fast Spiral |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Helix Angle | 35 ? |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.013 mm |
| Shank Diameter (Decimal Inch) | 0.125 in; 3.17 mm |
